I am currently rebuilding my Savage with some select upgrades and modifications! Check back soon!




Almost done, now if only the snow would melt!


Upgrades to date:

Picco .26 Outlaw
GPM Heatsink engine mount (custom fitted to Picco)
Nova Cooling head
Ofna duel chamber tuned pipe (RB clone?)
eNVy 30mm vented flywheel
Mugen 3 shoe clutch
Motorsaver Savage air filter
GPM 7075 3mm TVP (Blue)
GPM Front Bulkhead Side Plates (Purple)
GPM Rear Bulkhead Side Plates (Purple)
GPM Gear box brace (Purple)
GPM Alloy brake disc hub (Blue)
GPM Front C Hub (Blue)
GPM Alloy Spur gear adapter (Purple)
GPM Alloy Exhaust Mount (Purple)
GPM Titanium Tie Rods
GPM Titanium Hinge Pins
Adrenaline RC Alloy fuel tank guard (Purple)
GPM Alloy Steering Plate (Blue)
Ofna Monster Pirate Bellcranks w bearings
HPI HD Dogbones Front/Rear
HPI HD Dogbones Centers
HPI HD Tranny drive cups
HPI HD Diff drive cups
HPI Savage Primerless Fuel tank
HB Devastator Rims/Stock tires
SS Hardware Kit RC Screwz
Custom made Plastic Center Skidplate

Hitec 645MG Sterring Servo (SF-2 on throttle/brake)
Ofna Micro Fail Safe
Venom On board temp gauge
1100 mah Hump pack (charge jack mod)
MX-3 FM TX / Hitec RX
4 spider diff mod (5000 front/3000 rear
Ofna throttle linkage mod (blue/purple mix)
GPM Bulk head support brace mod
Skid plate brace mod
52/49 spurs, 15/16/17/18 vented clutchbells

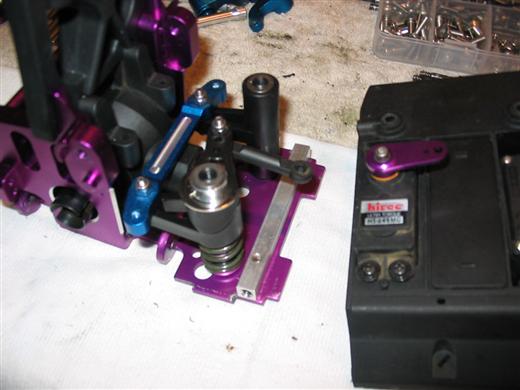

Ofna Monster Pirate Steering assembly in place.

  Considered one of the best steering mods for the Savage. The ofna MP bellacrank has a built in Heavy Duty servo saver incorporated into it.  This allows for the use of an alloy servo arm to replace a servo saver. There is literally zero play or flex in the steering assembly now.

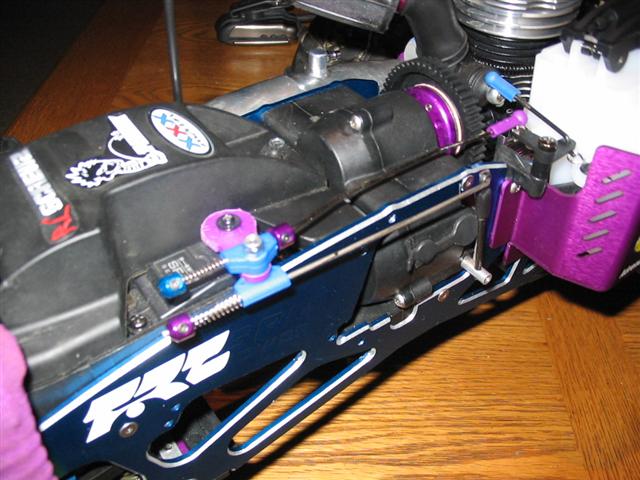

Ofna throttle linkage Mod.
  The stock throttle/brake linkage can lend itself to flex, thus decreasing performance. A common Savage mod is to swap out the stock set-up with an ofna set-up.  The ofna kit comes with all of the essentials required. I also used a Tmaxx linkage rod for the brake rod.

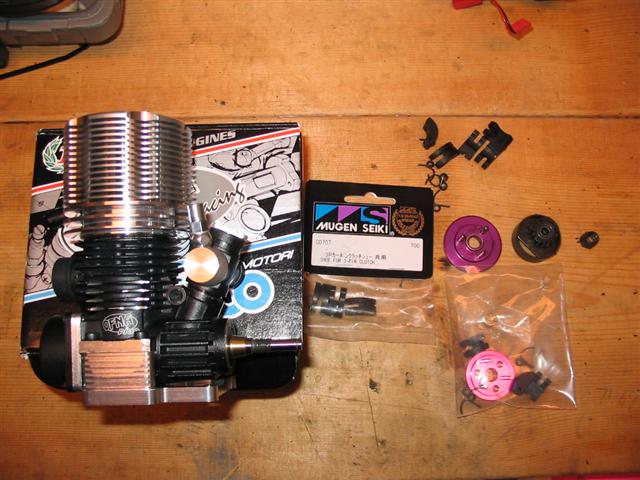

Picco Outlaw .26 among other parts are arriving!

  My Savage will be transformed soon!  Check back for a new and improved Monster.
:)

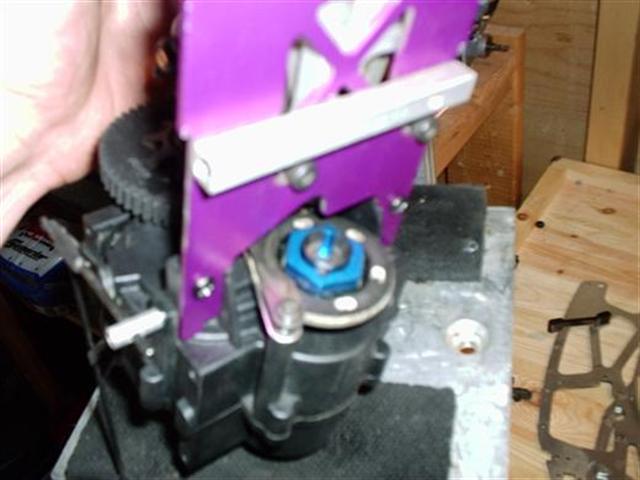

The stock brake hub showed some signs of stripping so I replaced it with a GPM alloy brake hub.

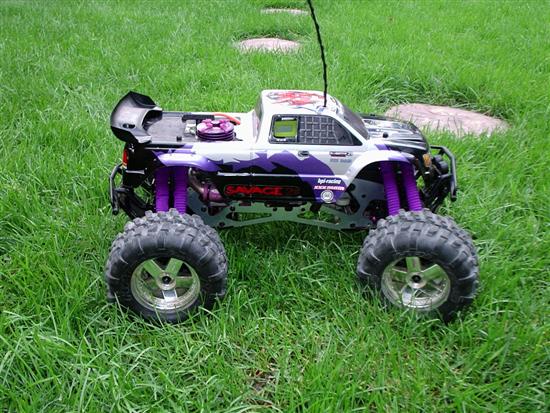

A Trans am wing on the Savage? (ya I tore it off on the first roll over)

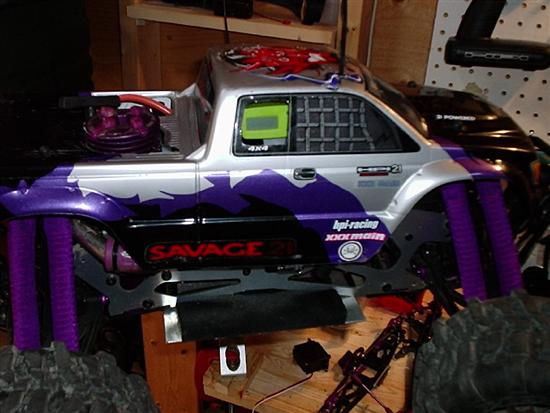

For ease of Temperature monitoring I cut a small window and placed the Venom temp guage high in the Rollbar.

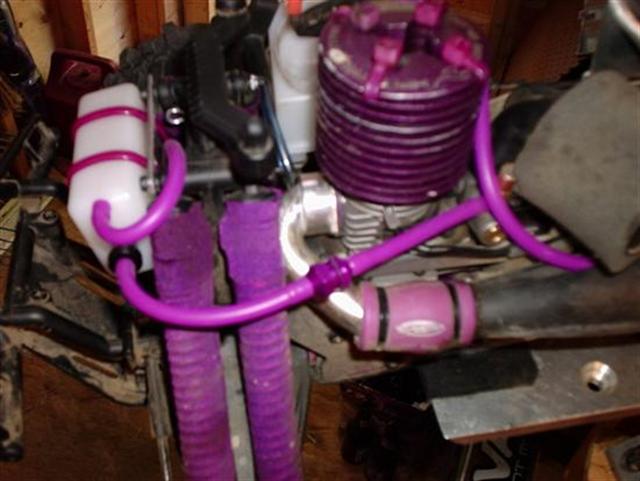

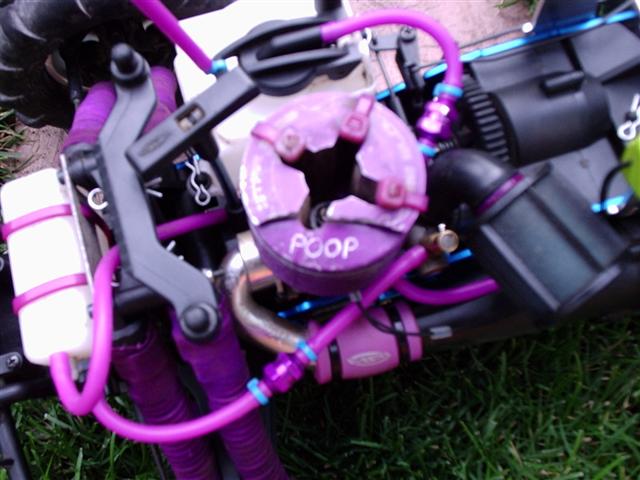

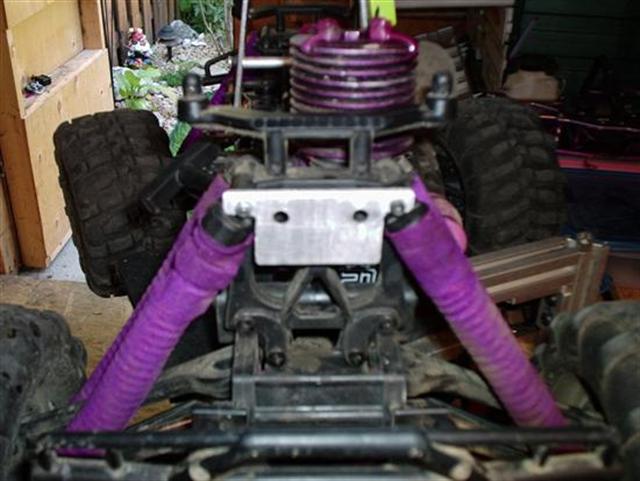

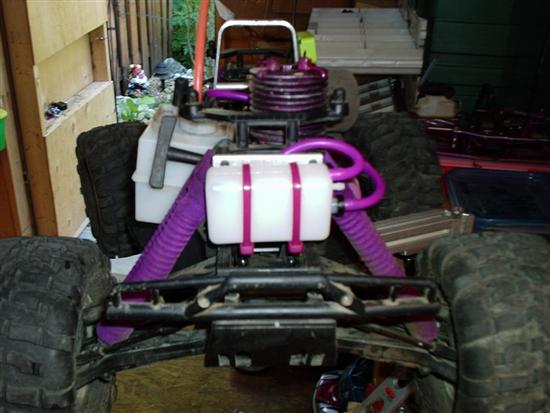

Savage Header Tank Mod.
This mod is easy and inexpensive. The purpose is to prevent the Savage from leaning out at half a tank of fuel, and also allows the Savage to run upside down for more than a few seconds without sputtering and stalling. I made a custom Aluminum mounting bracket to hold the header tank in position. The bracket mounts firmly on the upper shock bolts, and also helps stiffen up the rear shocktower a bit.

I mounted the tank so that the fuel outlet out of the header tank is level with the fuel nipple for good fuel flow.

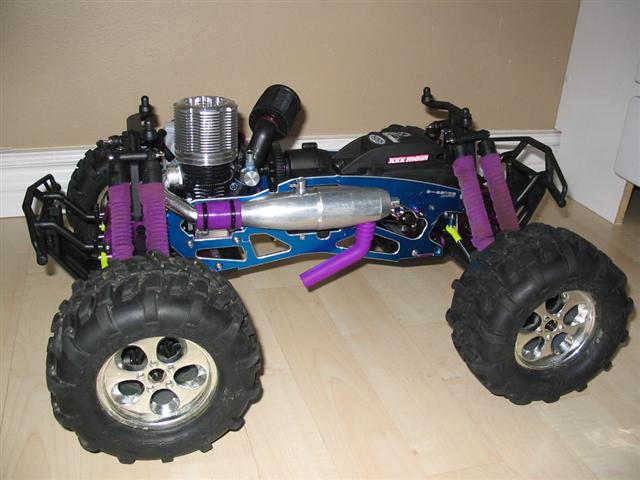

Ready to bash! Shouldnt have a problem keeping the .21 BB under 280 anymore!
